#include <RKPlus.h>

Inheritance diagram for RK4:

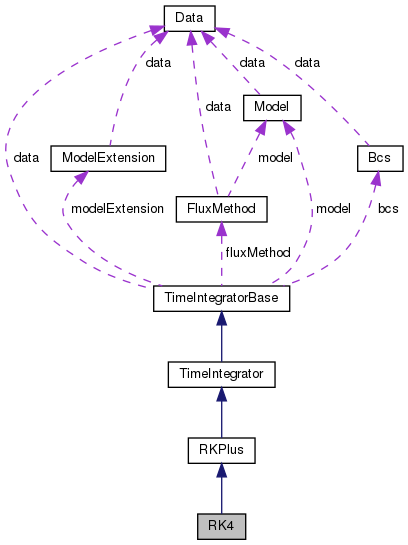

Collaboration diagram for RK4:

[legend]

Public Member Functions
	RK4 (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~RK4 ()

void	stage1 (double cons, double prims, double *aux, double dt)

void	stage2 (double cons, double prims, double *aux, double dt)

void	stage3 (double cons, double prims, double *aux, double dt)

void	stage4 (double cons, double prims, double *aux, double dt)

void	stage5 (double cons, double prims, double *aux, double dt)

void	step (double cons, double prims, double *aux, double dt=0)

Public Member Functions inherited from RKPlus
	RKPlus (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~RKPlus ()

virtual void	rhs (double cons, double prims, double aux, double rhsVec)

Public Member Functions inherited from TimeIntegrator
	TimeIntegrator (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~TimeIntegrator ()

void	finalise (double cons, double prims, double *aux)

Public Member Functions inherited from TimeIntegratorBase
	TimeIntegratorBase (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~TimeIntegratorBase ()

Public Attributes

double *	u1cons

double *	u1prims

double *	u1aux

double *	u2cons

double *	u2prims

double *	u2aux

double *	u3cons

double *	u3prims

double *	u3aux

double *	u4cons

double *	u4prims

double *	u4aux

double *	rhs1

double *	rhs2

double *	rhs3

double *	rhs4

double *	rhs5

Public Attributes inherited from RKPlus
double *	fluxCont

Public Attributes inherited from TimeIntegratorBase
Data *	data

Model *	model

Bcs *	bcs

FluxMethod *	fluxMethod

ModelExtension *	modelExtension

Detailed Description

Fourth order RK.

: SSPRK(5,4) from Gottlieb 2009. This can run the AdvectionSingleFluid test with cfl=2.3

: The step function performs the following stages. Stage 1:
\begin{align} U^{(1)} = U^n + 0.391752226571890 \Delta t \mathcal{L}(U^n). \end{align}

Stage 2:

\begin{align} U^{(2)} = 0.444370493651235 U^n + 0.555629506348765 U^{(1)} + 0.368410593050371 \Delta t \mathcal{L}(U^{(1)}) \end{align}

Stage 3:

\begin{align} U^{(3} = 0.620101851488403 U^n + 0.379898148511597 U^{(2)} + 0.251891774271694 \Delta t \mathcal{L}(U^{(2)}) \end{align}

Stage 4:

\begin{align} U^{(4} = 0.178079954393132 U^n + 0.821920045606868 U^{(3)} + 0.544974750228521 \Delta t \mathcal{L}(U^{(3)}) \end{align}

Stage 5:

\begin{align} U^{n+1} = = 0.517231671970585 U^{(2)} + 0.096059710526147 U^{(3)} + 0.386708617503269 U^{(4)} + 0.063692468666290 \Delta t \mathcal{L}(U^{(3)}) + 0.226007483236906 \Delta t \mathcal{L}(U^{(4)}) \end{align}

Definition at line 307 of file RKPlus.h.

Constructor & Destructor Documentation

◆ RK4()

RK4::RK4	(	Data *	data,
		Model *	model,
		Bcs *	bcs,
		FluxMethod *	fluxMethod,
		ModelExtension *	modelExtension = `NULL`
	)

Constructor.

Constructor requires simulation data and the flux and source functions from the model class. Stores the necessary pointer.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: TimeIntegrator::TimeIntegrator; RKPlus::RKPlus

◆ ~RK4()

virtual RK4::~RK4 ( )

virtual

Member Function Documentation

◆ stage1()

void RK4::stage1	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt
	)

Stage 2 result.

Compute and store stage 2 result.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4::RK4

◆ stage2()

void RK4::stage2	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt
	)

Stage 2 result.

Compute and store stage 2 result.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4::RK4

◆ stage3()

void RK4::stage3	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt
	)

Stage 3 result.

Compute and store stage 3 result.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4::RK4

◆ stage4()

void RK4::stage4	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt
	)

Stage 4 result.

Compute and store stage 4 result.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4::RK4

◆ stage5()

void RK4::stage5	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt
	)

Stage 5 result.

Compute and store stage 5 result.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4::RK4

◆ step()

void RK4::step	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt = `0`
	)

virtual

Performs a single time step.

The timestep will use the current values of the conserved, primitive and auxiliary variables at t=t0 and compute the values of all of them at time \(t=t_0 + dt\). I.e. the conserved vector is evolved forward, and the corresponding prims and aux vars are found.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: TimeIntegrator::step

Implements TimeIntegratorBase.
