#include <RKPlus.h>

Inheritance diagram for RK4_10:

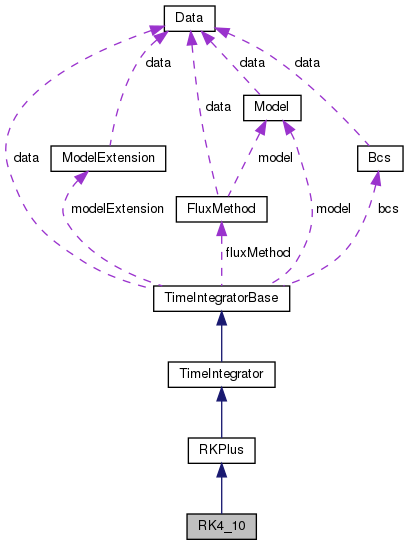

Collaboration diagram for RK4_10:

[legend]

Public Member Functions
	RK4_10 (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~RK4_10 ()

void	prepare1 (double cons, double prims, double *aux)

void	prepare2 (double cons, double prims, double *aux)

void	stageRepeat (double cons, double prims, double *aux, double dt)

void	stageFinal (double cons, double prims, double *aux, double dt)

void	step (double cons, double prims, double *aux, double dt=0)

Public Member Functions inherited from RKPlus
	RKPlus (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~RKPlus ()

virtual void	rhs (double cons, double prims, double aux, double rhsVec)

Public Member Functions inherited from TimeIntegrator
	TimeIntegrator (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~TimeIntegrator ()

void	finalise (double cons, double prims, double *aux)

Public Member Functions inherited from TimeIntegratorBase
	TimeIntegratorBase (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~TimeIntegratorBase ()

Public Attributes

double *	u1cons

double *	u1prims

double *	u1aux

double *	u2cons

double *	u2prims

double *	u2aux

double *	rhs1

Public Attributes inherited from RKPlus
double *	fluxCont

Public Attributes inherited from TimeIntegratorBase
Data *	data

Model *	model

Bcs *	bcs

FluxMethod *	fluxMethod

ModelExtension *	modelExtension

Detailed Description

Fourth order RK.

: SSPRK(10,4) from Gottlieb 2009, see code example in paper. This can run the AdvectionSingleFluid test with cfl=3.6

Definition at line 421 of file RKPlus.h.

Constructor & Destructor Documentation

◆ RK4_10()

RK4_10::RK4_10	(	Data *	data,
		Model *	model,
		Bcs *	bcs,
		FluxMethod *	fluxMethod,
		ModelExtension *	modelExtension = `NULL`
	)

Constructor.

Constructor requires simulation data and the flux and source functions from the model class. Stores the necessary pointer.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: TimeIntegrator::TimeIntegrator; RKPlus::RKPlus

◆ ~RK4_10()

virtual RK4_10::~RK4_10 ( )

virtual

Member Function Documentation

◆ prepare1()

void RK4_10::prepare1	(	double *	cons,
		double *	prims,
		double *	aux
	)

Prepare for stages 1-5.

Prepare the work arrays for the first 5 stages.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4_10::RK4_10

◆ prepare2()

void RK4_10::prepare2	(	double *	cons,
		double *	prims,
		double *	aux
	)

Prepare for stages 6-9.

Prepare the work arrays for the next 4 stages.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4_10::RK4_10

◆ stageFinal()

void RK4_10::stageFinal	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt
	)

Final stage result.

Compute and storethe final stage result.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4_10::RK4_10

◆ stageRepeat()

void RK4_10::stageRepeat	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt
	)

Compute the stage that it iteratively applied.

Compute and store the stage for this integrator.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: RK4_10::RK4_10

◆ step()

void RK4_10::step	(	double *	cons,
		double *	prims,
		double *	aux,
		double	dt = `0`
	)

virtual

Performs a single time step.

The timestep will use the current values of the conserved, primitive and auxiliary variables at t=t0 and compute the values of all of them at time \(t=t_0 + dt\). I.e. the conserved vector is evolved forward, and the corresponding prims and aux vars are found.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxiliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also: TimeIntegrator::step

Implements TimeIntegratorBase.
