Hybrid Class Reference

#include <hybrid.h>

Inheritance diagram for Hybrid:

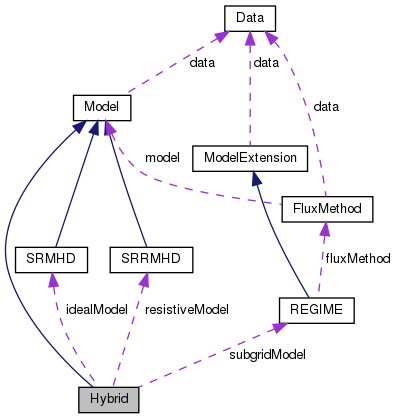

Collaboration diagram for Hybrid:

Public Member Functions
	Hybrid ()
	Hybrid (Data *data, double sigmaCrossOver=150, double sigmaSpan=50, bool useREGIME=true)
virtual	~Hybrid ()
void	setupREGIME (FluxMethod *fluxMethod)
void	sourceTermSingleCell (double *cons, double *prims, double *aux, double *source, int i=-1, int j=-1, int k=-1)
void	sourceTerm (double *cons, double *prims, double *aux, double *source)
void	getPrimitiveVarsSingleCell (double *cons, double *prims, double *aux, int i=-1, int j=-1, int k=-1)
void	getPrimitiveVars (double *cons, double *prims, double *aux)
void	primsToAll (double *cons, double *prims, double *aux)
void	fluxVector (double *cons, double *prims, double *aux, double *f, const int dir)
void	finalise (double *cons, double *prims, double *aux)
Public Member Functions inherited from Model
	Model ()
	Model (Data *data)
virtual	~Model ()

Public Attributes
double *	icons
double *	iprims
double *	iaux
double *	sicons
double *	siprims
double *	siaux
double *	iflux
double *	rflux
double *	isource
double *	rsource
double *	regimeSource
double	sigmaCrossOver
double	sigmaSpan
bool	useREGIME
SRRMHD *	resistiveModel
SRMHD *	idealModel
REGIME *	subgridModel = NULL
int *	mask
Public Attributes inherited from Model
Data *	data
int	Ncons
int	Nprims
int	Naux

Private Member Functions
double	idealWeight (double *cons, double *prims, double *aux)
double	idealWeightID (double *cons, double *prims, double *aux, int i, int j, int k)
bool	useResistive (double *cons, double *prims, double *aux)
void	setIdealCPAs (double *cons, double *prims, double *aux)
void	setIdealCPAsAll (double *cons, double *prims, double *aux)
void	setMasks (double *cons, double *prims, double *aux)

Detailed Description

Hybrid model

This hybrid model combines the ideal and resistive models, dynamically swutching between the two dependant upon the local (and nearest neighbours' if using REGIME) conductivity. This model is SRRMHD in disguise, that is, for any cons, prims, aux arguments, these refer to the resistive versions. Ideal vectors are prefixed with `i'.

Switching between the models uses the tanh function, centred around some crossover conductivity, \(\sigma_{crossover}\), and with in the span of \(\pm\sigma_{span}\). For conductivities less than \(\sigma_c-\sigma_s\) the resistive model is used, and for \(\simga_c+\sigma_s\) ideal is used. If REGIME is used, it is calculated across the entire domain and added to the ideal MHD contribution.

The source and flux vectors of the hybrid model are a combination of the SRMHD and SRRMHD source and flux vectors, weighted according to the tanh penalty function.

The C2P of this model utilises the resistive C2P for \(\sigma<\sigma_c\) and the ideal C2P otherwise.

If specified in the constructor, he REGIME source is calculated for the whole domain, but only added to the source vector if the cell, and its nearest 3 neighbours have conductivites \(\sigma\ge\sigma_c-\sigma_s\).

Definition at line 37 of file hybrid.h.

Constructor & Destructor Documentation

Hybrid() [1/2]

Hybrid::Hybrid

(

)

Default constructor.

Hybrid() [2/2]

Hybrid::Hybrid	(	Data *	data,
		double	sigmaCrossOver = 150,
		double	sigmaSpan = 50,
		bool	useREGIME = true
	)

Parameterized constructor.

Stores a pointer to the Data class for reference in its methods. Sets up the parameters for the hybrid model.

Parameters

~Hybrid()

virtual Hybrid::~Hybrid ( )

virtual

Destructor.

Member Function Documentation

finalise()

void Hybrid::finalise ( double *  cons, double *  prims, double *  aux  )

virtual

Finalise the simulation variables.

At the end of each step, we need to calculate the ideal electric fields and add their contribution to hybrids electric fields.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\)
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\)
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\)

Reimplemented from Model.

fluxVector()

void Hybrid::fluxVector ( double *  cons, double *  prims, double *  aux, double *  f, const int  dir  )

virtual

Flux vector.

Compute the flux vector for all cells. We weight the contributions from ideal and resistive MHD for this using the penalty function.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\)
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\)
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\)
[in,out]	f	pointer to flux vector work array. Size is \(N_{cons}*N_x*N_y*N_z\)
	dir	direction in which to generate flux vector. \((x, y, z) = (0, 1, 2)\)

See also

Model::fluxVector

SRMHD::fluxVector

SRRMHD::fluxVector

Implements Model.

getPrimitiveVars()

void Hybrid::getPrimitiveVars ( double *  cons, double *  prims, double *  aux  )

virtual

Conservative to primitive transformation for all cells.

Conservative to primitive transformation for all cells. If local conductivity is less than the crossover conductivity we use the resistive C2P, otherwise we use ideal.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\)
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\)
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\)

See also

Model::getPrimitiveVarsSingleCell

SRMHD::getPrimitiveVarsSingleCell

SRRMHD::getPrimitiveVarsSingleCell

Implements Model.

getPrimitiveVarsSingleCell()

void Hybrid::getPrimitiveVarsSingleCell ( double *  cons, double *  prims, double *  aux, int  i = -1, int  j = -1, int  k = -1  )

virtual

Single cell conservative to primitive transformation.

Conservative to primitive transformation for a single computational cell. If local conductivity is less than the crossover conductivity we use the resistive C2P, otherwise we use ideal.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}\)
[in]	prims	pointer to primitive vector. Size is \(N_{prims}\)
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}\)
	i	int cell number in x-direction (optional)
	j	int cell number in y-direction (optional)
	k	int cell number in z-direction (optional)

See also

Model::getPrimitiveVarsSingleCell

SRMHD::getPrimitiveVarsSingleCell

SRRMHD::getPrimitiveVarsSingleCell

Implements Model.

idealWeight()

double Hybrid::idealWeight ( double *  cons, double *  prims, double *  aux  )

private

Penalty function: ideal contribution.

Compute the contribution from idealMHD for a single cell. The arguments are the cons prims and aux of only one cell.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}\).
[in]	prims	pointer to primitive vector. Size is \(N_{prims}\).
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}\).

Returns

iW double fractional contribution of the ideal model. (1-iW) gives the resistive contribution.

idealWeightID()

double Hybrid::idealWeightID ( double *  cons, double *  prims, double *  aux, int  i, int  j, int  k  )

private

Penalty function: ideal contribution.

Compute the contribution from idealMHD for a single cell. The arguments are the cons prims and aux of the whole domain, and a cell position to return the weighting for.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\).
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\).
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\).
	i	int x-coordinate of cell to get weighting for.
	j	int y-coordinate of cell to get weighting for.
	k	int z-coordinate of cell to get weighting for.

Returns

iW double fractional contribution of the ideal model. (1-iW) gives the resistive contribution.

primsToAll()

void Hybrid::primsToAll ( double *  cons, double *  prims, double *  aux  )

virtual

Primitive-to-all transformation.

Primitive to everything transformation. We weight the contributions from ideal and resistive MHD for this using the penalty function.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\)
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\)
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\)

See also

Model::primsToAll

SRMHD::primsToAll

SRRMHD::primsToAll

Implements Model.

setIdealCPAs()

void Hybrid::setIdealCPAs ( double *  cons, double *  prims, double *  aux  )

private

Set ideal cons, prims and aux vectors for a single cell.

Set the ideal conserved, primitive and auxiliary vectors from the (given) resistive conserved, primitive and auxiliary vectors, for a single computational cell.

Parameters

[in]	cons	pointer to resistive conserved vector. Size is \(N_{cons}\).
[in]	prims	pointer to resistive primitive vector. Size is \(N_{prims}\).
[in]	aux	pointer to resistive auxiliary vector. Size is \(N_{aux}\).
[out]	sicons	pointer to ideal conserved vector. Size is \(N_{cons}\).
[out]	siprims	pointer to ideal primitive vector. Size is \(N_{prims}\).
[out]	siaux	pointer to ideal auxiliary vector. Size is \(N_{aux}\).

setIdealCPAsAll()

void Hybrid::setIdealCPAsAll ( double *  cons, double *  prims, double *  aux  )

private

Set ideal cons, prims and aux vectors for all cells.

Set the ideal conserved, primitive and auxiliary vectors from the (given) resistive conserved, primitive and auxiliary vectors, for all computational cells.

Parameters

[in]	cons	pointer to resistive conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\).
[in]	prims	pointer to resistive primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\).
[in]	aux	pointer to resistive auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\).
[out]	icons	pointer to ideal conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\).
[out]	iprims	pointer to ideal primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\).
[out]	iaux	pointer to ideal auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\).

setMasks()

void Hybrid::setMasks ( double *  cons, double *  prims, double *  aux  )

private

Set the REGIME source mask.

Set the REGIME mask to indicate whether the REGIME source should be added to the hybrid->source vector.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\).
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\).
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\).
[out]	mask	pointer to mask array.

setupREGIME()

void Hybrid::setupREGIME

(

FluxMethod *

fluxMethod

)

Setup the REGIME model.

Initialise the REGIME model and store a pointer it. Also allocate memory for the REGIME source vector and the mask.

Parameters

[in]

fluxMethod

pointer to simulations FluxMethod

sourceTerm()

void Hybrid::sourceTerm ( double *  cons, double *  prims, double *  aux, double *  source  )

virtual

Source term contribution.

Source term calculation for all cells. Weighted sum of ideal and resistive contributions.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\)
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\)
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\)
[in,out]	source	pointer to source vector. Size is \(N_{cons}*N_x*N_y*N_z\)

See also

Model::sourceTermSingleCell

SRMHD::sourceTermSingleCell

SRRMHD::sourceTermSingleCell

Implements Model.

sourceTermSingleCell()

void Hybrid::sourceTermSingleCell ( double *  cons, double *  prims, double *  aux, double *  source, int  i = -1, int  j = -1, int  k = -1  )

virtual

Single cell source term contribution.

Source term calculation for a single computational cell. Weighted sum of ideal and resistive contributions

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}\)
[in]	prims	pointer to primitive vector. Size is \(N_{prims}\)
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}\)
[in,out]	source	pointer to source vector. Size is \(N_{cons}\)
	i	int cell number in x-direction (optional)
	j	int cell number in y-direction (optional)
	k	int cell number in z-direction (optional)

See also

Model::sourceTermSingleCell

SRMHD::sourceTermSingleCell

SRRMHD::sourceTermSingleCell

Implements Model.

useResistive()

bool Hybrid::useResistive ( double *  cons, double *  prims, double *  aux  )

private

Use resistive C2P?

Should we use the resistive C2P? If the local conductivity is less than the crossover conductivity, we use the resistive C2P.

Parameters

[in]	cons	pointer to conserved vector. Size is \(N_{cons}*N_x*N_y*N_z\).
[in]	prims	pointer to primitive vector. Size is \(N_{prims}*N_x*N_y*N_z\).
[in]	aux	pointer to auxiliary vector. Size is \(N_{aux}*N_x*N_y*N_z\).

Returns

use bool do we use the resistive C2P?

Member Data Documentation

iaux

double * Hybrid::iaux

Definition at line 43 of file hybrid.h.

icons

double* Hybrid::icons

Definition at line 43 of file hybrid.h.

idealModel

SRMHD* Hybrid::idealModel

Definition at line 56 of file hybrid.h.

iflux

double * Hybrid::iflux

Definition at line 43 of file hybrid.h.

iprims

double * Hybrid::iprims

Definition at line 43 of file hybrid.h.

isource

double * Hybrid::isource

Definition at line 43 of file hybrid.h.

mask

int* Hybrid::mask

Definition at line 60 of file hybrid.h.

regimeSource

double * Hybrid::regimeSource

Definition at line 43 of file hybrid.h.

resistiveModel

SRRMHD* Hybrid::resistiveModel

Definition at line 54 of file hybrid.h.

rflux

double * Hybrid::rflux

Definition at line 43 of file hybrid.h.

rsource

double * Hybrid::rsource

Definition at line 43 of file hybrid.h.

siaux

double * Hybrid::siaux

Definition at line 43 of file hybrid.h.

sicons

double * Hybrid::sicons

Definition at line 43 of file hybrid.h.

sigmaCrossOver

double Hybrid::sigmaCrossOver

Definition at line 43 of file hybrid.h.

sigmaSpan

double Hybrid::sigmaSpan

Definition at line 43 of file hybrid.h.

siprims

double * Hybrid::siprims

Definition at line 43 of file hybrid.h.

subgridModel

REGIME* Hybrid::subgridModel = NULL

Definition at line 58 of file hybrid.h.

useREGIME

bool Hybrid::useREGIME

Definition at line 50 of file hybrid.h.

---

The documentation for this class was generated from the following file:

• hybrid.h
