#include <rkSplit.h>

Inheritance diagram for RKSplit:

[legend]

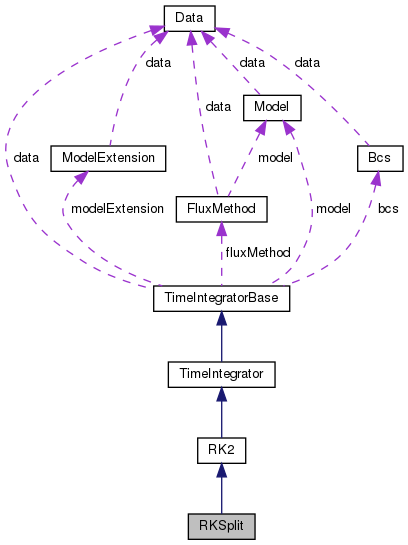

Collaboration diagram for RKSplit:

[legend]

Public Member Functions
	RKSplit (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~RKSplit ()

Public Member Functions inherited from RK2
	RK2 (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~RK2 ()

void	predictorStep (double cons, double prims, double *aux, double dt)

void	correctorStep (double cons, double prims, double *aux, double dt)

void	step (double cons, double prims, double *aux, double dt=0)

Public Member Functions inherited from TimeIntegrator
	TimeIntegrator (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~TimeIntegrator ()

void	finalise (double cons, double prims, double *aux)

Public Member Functions inherited from TimeIntegratorBase
	TimeIntegratorBase (Data data, Model model, Bcs bcs, FluxMethod fluxMethod, ModelExtension *modelExtension=NULL)

virtual	~TimeIntegratorBase ()

Additional Inherited Members
Public Attributes inherited from RK2
double *	p1cons

double *	p1prims

double *	p1aux

double *	args1

double *	args2

Public Attributes inherited from TimeIntegratorBase
Data *	data

Model *	model

Bcs *	bcs

FluxMethod *	fluxMethod

ModelExtension *	modelExtension

Detailed Description

Operator splitting RK2 integrator, first order accurate in time

: Integrator deals with the flux and source contributions separately, first performing the two stages as a result of the flux integration, and the adds the contribution of the source with the new values of the fields.

Note: This is a fully explicit method at dealing with the source contributions, do not expect this integrator to converge for large source contributions, i.e. for sources that act on a fast timescale compared to the flux terms. For stiff hyperbolic systems, we need to solve the sources implicitly to ensure stability.

The step function performs the RK2 step:

\begin{align} U^{*} = \frac{1}{2} U^n + \frac{1}{2} U^{(1)} + \frac{1}{2} \Delta t \mathcal{F}(U^{(1)}) \end{align}

where the first stage result is

\begin{align} U^{(1)} = U^n + \Delta t \mathcal{F}(U^n), \end{align}

and then adds the source due to this stage,

\begin{align} U^{n+1} = U^* + \Delta t \Psi(U^*), \end{align}

where \(\Psi(U)\) is the source vector due to the state \(U\).

Definition at line 37 of file rkSplit.h.

Constructor & Destructor Documentation

inline

Constructor.

Constructor requires simulation data and the flux and source functions from the model class.

Parameters

[in]	*data	pointer to Data class containing global simulation data
[in]	*model	pointer to Model object
[in]	*bcs	pointer to Bcs object
[in]	*fluxMethod	pointer to FluxMethod object
[in]	*modelExtension	pointer to the ModelExtension object

Definition at line 55 of file rkSplit.h.

virtual RKSplit::~RKSplit ( )

inlinevirtual

Destructor.

Definition at line 59 of file rkSplit.h.

The documentation for this class was generated from the following file:
