RKSplit2 Class Reference

#include <rkSplit2ndOrder.h>

Inheritance diagram for RKSplit2:

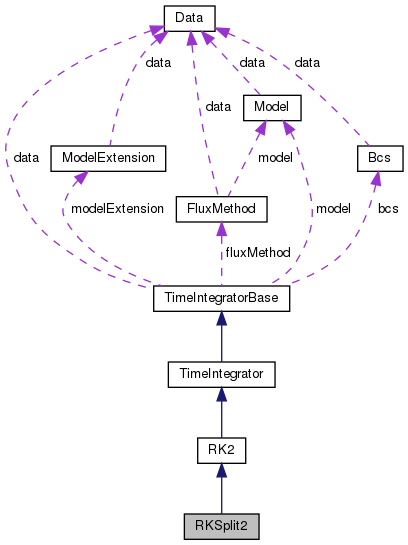

Collaboration diagram for RKSplit2:

Public Member Functions
	RKSplit2 (Data *data, Model *model, Bcs *bcs, FluxMethod *fluxMethod, ModelExtension *modelExtension=NULL)
virtual	~RKSplit2 ()
void	setSource (double *cons, double *prims, double *aux)
void	step (double *cons, double *prims, double *aux, double dt=0)
Public Member Functions inherited from RK2
	RK2 (Data *data, Model *model, Bcs *bcs, FluxMethod *fluxMethod, ModelExtension *modelExtension=NULL)
virtual	~RK2 ()
void	predictorStep (double *cons, double *prims, double *aux, double dt)
void	correctorStep (double *cons, double *prims, double *aux, double dt)
Public Member Functions inherited from TimeIntegrator
	TimeIntegrator (Data *data, Model *model, Bcs *bcs, FluxMethod *fluxMethod, ModelExtension *modelExtension=NULL)
virtual	~TimeIntegrator ()
void	finalise (double *cons, double *prims, double *aux)
Public Member Functions inherited from TimeIntegratorBase
	TimeIntegratorBase (Data *data, Model *model, Bcs *bcs, FluxMethod *fluxMethod, ModelExtension *modelExtension=NULL)
virtual	~TimeIntegratorBase ()

Additional Inherited Members
Public Attributes inherited from RK2
double *	p1cons
double *	p1prims
double *	p1aux
double *	args1
double *	args2
Public Attributes inherited from TimeIntegratorBase
Data *	data
Model *	model
Bcs *	bcs
FluxMethod *	fluxMethod
ModelExtension *	modelExtension

Detailed Description

Operator splitting RK2 integrator, second order accurate in time

Integrator deals with the flux and source using Strang splitting, first adding have a source term, then performing the two stages as a result of the flux integration, and the finally adding the dsecond half of the contribution of the source. See Font 2008 Section 4.1

Note

This is a fully explicit method at dealing with the source contributions, do not expect this integrator to converge for large source contributions, i.e. for sources that act on a fast timescale compared to the flux terms. For stiff hyperbolic systems, we need to solve the sources implicitly to ensure stability.

First, add half a source,

\begin{align} U^{*} = U^n + \frac{1}{2} \Delta t \Psi(U^n) \end{align}

then perform the RK2 step,

\begin{align} U^{**} = \frac{1}{2} U^* + \frac{1}{2} U^{(1)} + \frac{1}{2} \Delta t \mathcal{F}(U^{(1)}) \end{align}

where the first stage result is

\begin{align} U^{(1)} = U^* + \Delta t \mathcal{F}(U^*), \end{align}

and then adds the source due to this stage,

\begin{align} U^{n+1} = U^** + \Delta t \Psi(U^**), \end{align}

where \(\Psi(U)\) is the source vector due to the state \(U\).

See also

RKSplit

RK2

Definition at line 42 of file rkSplit2ndOrder.h.

Constructor & Destructor Documentation

RKSplit2()

RKSplit2::RKSplit2 ( Data *  data, Model *  model, Bcs *  bcs, FluxMethod *  fluxMethod, ModelExtension *  modelExtension = NULL  )

inline

Constructor.

Constructor requires simulation data and the flux and source functions from the model class.

Parameters

[in]	*data	pointer to Data class containing global simulation data
[in]	*model	pointer to Model object
[in]	*bcs	pointer to Bcs object
[in]	*fluxMethod	pointer to FluxMethod object
[in]	*modelExtension	pointer to the ModelExtension object

See also

TimeIntegrator::TimeIntegrator

RK2::RK2

Definition at line 59 of file rkSplit2ndOrder.h.

~RKSplit2()

virtual RKSplit2::~RKSplit2 ( )

inlinevirtual

Destructor.

Definition at line 63 of file rkSplit2ndOrder.h.

Member Function Documentation

setSource()

void RKSplit2::setSource	(	double *	cons,
		double *	prims,
		double *	aux
	)

Set the source vector.

Set the source vector from the physics model and any model extensions

Parameters

[in]	cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	aux	pointer to auxilliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
[out]	source	pointer to data->source vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)

step()

void RKSplit2::step ( double *  cons, double *  prims, double *  aux, double  dt = 0  )

virtual

Performs a single time step.

The timestep will use the current values of the conserved, primitive and auxilliary variables at t=t0 and compute the values of all of them at time t=t0 + dt. I.e. the conserved vector is evolved forward, and the corresponding prims and aux vars are found.

Parameters

[in]	*cons	pointer to conserved vector work array. Size is \(N_{cons} \times N_x \times N_y \times N_z\)
[in]	*prims	pointer to primitive vector work array. Size is \(N_{prims} \times N_x \times N_y \times N_z\)
[in]	*aux	pointer to auxilliary vector work array. Size is \(N_{aux} \times N_x \times N_y \times N_z\)
	dt	the step size desired to move by. Defaults to the value in the Data class

See also

TimeIntegrator::step

RK2::step

Reimplemented from RK2.

---

The documentation for this class was generated from the following file:

• rkSplit2ndOrder.h
